Core Drilling Rigs

Unleash the potential of our Core Drilling Rigs, expertly engineered by our service, manufacturer, and supplier teams to address diverse drilling requirements with superior precision and efficiency. With over 24 years of hands-on experience, we proudly introduce the NGCORE50 Trolley Core Drilling Rig and NGCORE100 Trolley Core Drilling Rig-two incomparable solutions designed for reliability and outstanding performance in demanding environments. Our rigs boast exceptional structural stability, customizable configurations for unique project needs, the lowest price assurance in the domestic market, high operational efficiency, and user-friendly portability. Backed by a commitment to quality and excellence, these rigs stand out thanks to their advanced technology and superior build, ensuring consistent and accurate core extraction. As a trusted trader, we guarantee swift supply ability across All India and invite businesses to order with confidence, experiencing the exceptional value that sets our Core Drilling Rigs apart from the rest.

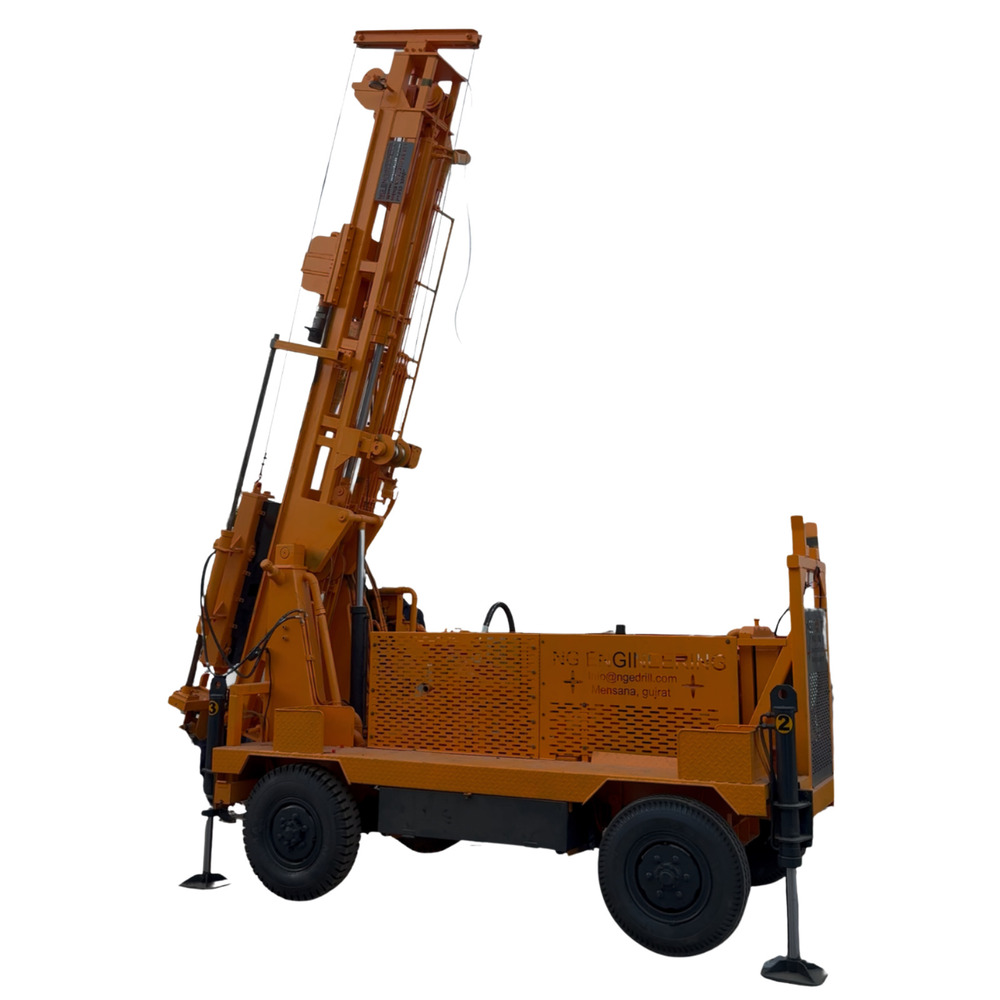

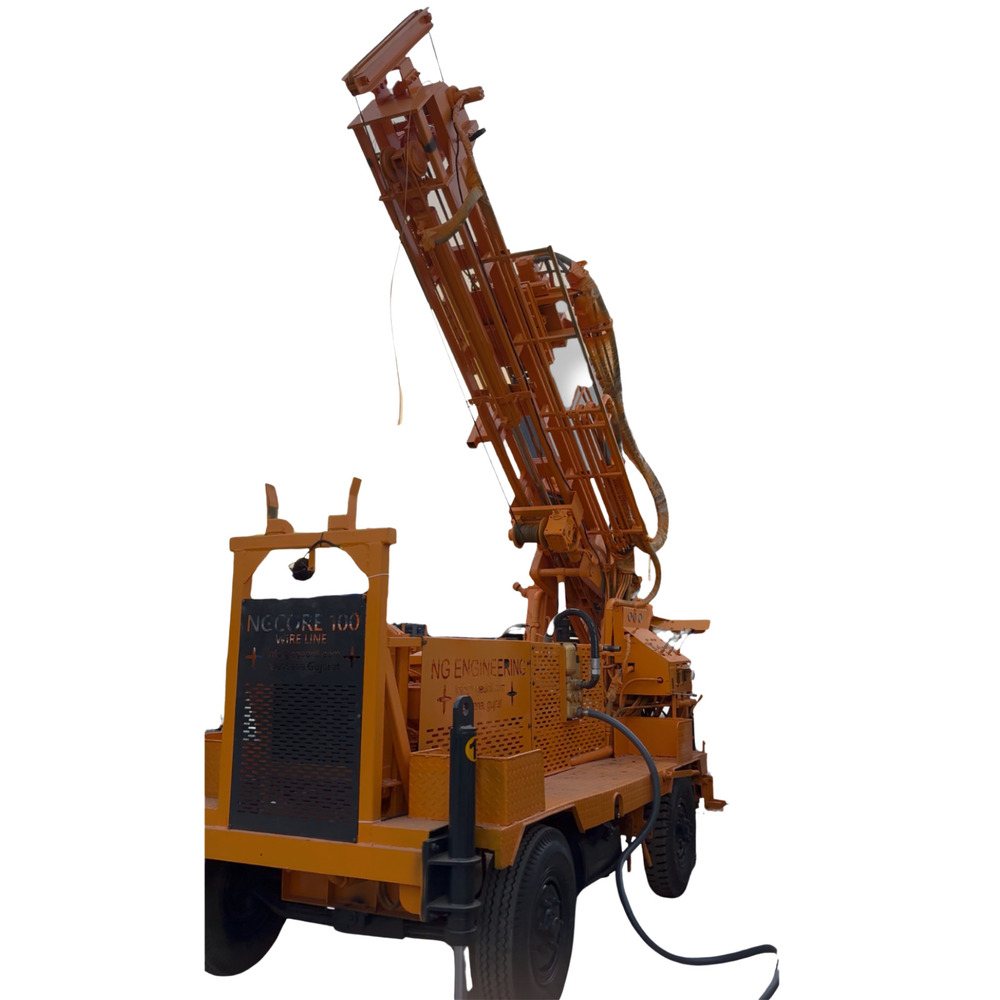

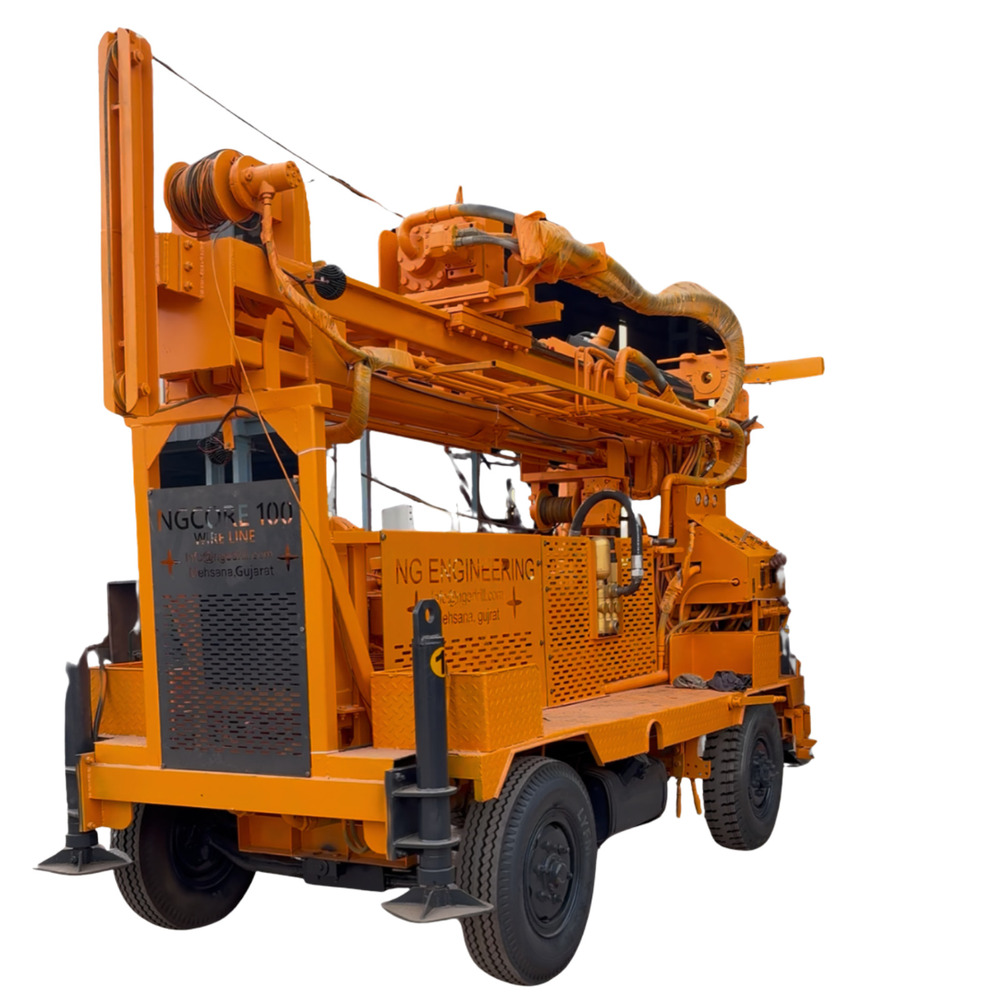

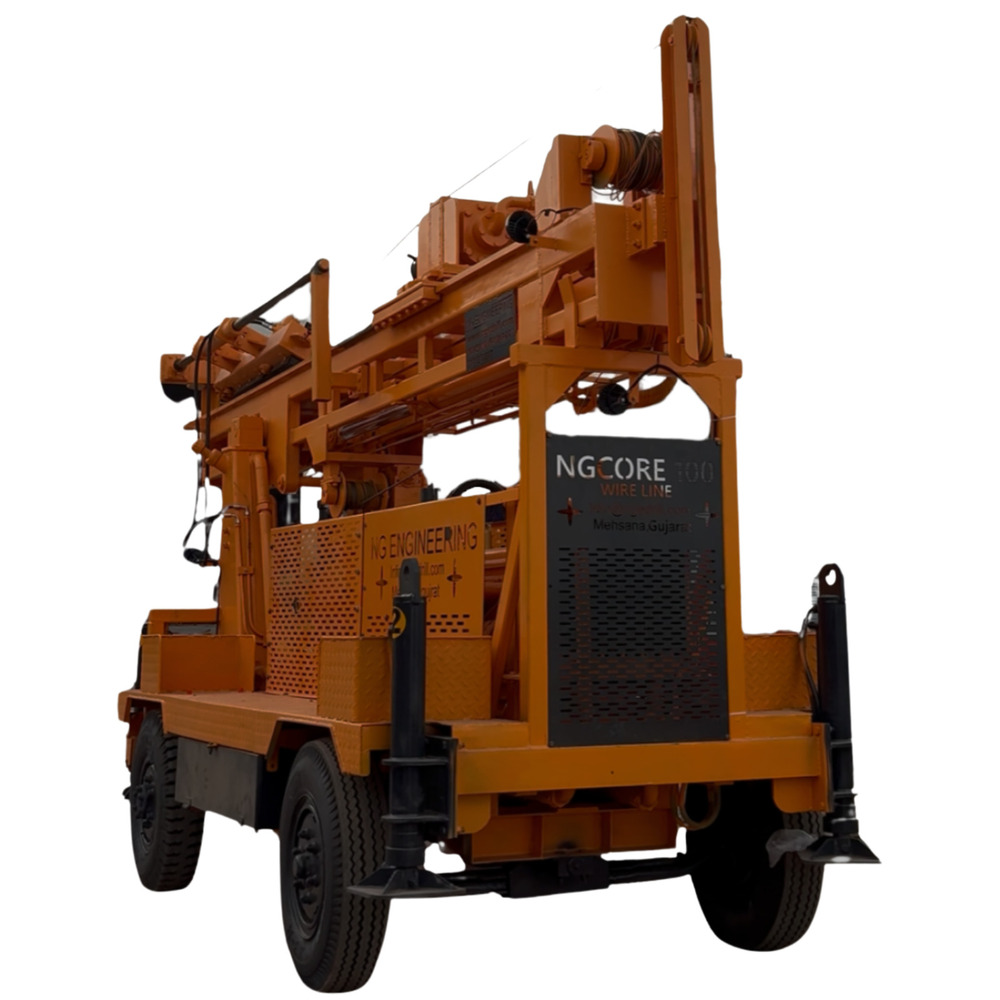

NGCORE100 Trolley Core Drilling Rig

MOQ : 1 Unit

  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • Other, No
  • Capacity
  • Drilling Depth up to 100 meters
  • Color
  • Industrial Orange
  • Computerized
  • No
  • Condition
  • New
  • Control System
  • Other, Manual Control Panel
  • Cutting Area
  • 100 mm to 150 mm diameter core barrels
  • Diameter
  • Core diameter 75 mm - 150 mm
  • Dimension (L*W*H)
  • 2700 mm x 1200 mm x 1500 mm
  • Features
  • Portable, Easy to Operate, Heavy Duty, High Drilling Efficiency
  • Frequency
  • 50/60 Hz
  • Machine Type
  • Core Drilling Machine
  • Material
  • Heavy Duty Steel Frame
  • Motor Power
  • 10 HP
  • Noise Level
  • Low
  • Power
  • 10 HP Diesel Engine / Electric Motor
  • Power Source
  • Diesel / Electric
  • Product Type
  • Trolley Core Drilling Rig
  • Spindle Speed
  • 0-600 rpm (Adjustable)
  • Table Size
  • Suitable for 1.5 meter core barrels
  • Usage & Applications
  • Geotechnical investigation, Mineral exploration, Soil testing
  • Voltage
  • 380V / 415V
  • Weight (kg)
  • Approx. 1500 kg

NGCORE50 Trolley Core Drilling Rig

MOQ : 1 Unit

  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • Other, No
  • Capacity
  • Drilling Depth up to 150 meters
  • Color
  • Yellow/Red
  • Computerized
  • No
  • Condition
  • New
  • Control System
  • Other, Hydraulic Control
  • Cutting Area
  • Coring Diameter up to 150 mm
  • Diameter
  • Core Diameter up to 150 mm
  • Dimension (L*W*H)
  • Approx. 4200 mm x 2000 mm x 2300 mm
  • Features
  • Heavy-duty frame, Easy to transport, High stability, Efficient hydraulic operation
  • Frequency
  • 50 Hz
  • Machine Type
  • Movable Core Drilling Rig
  • Material
  • Heavy-Duty Steel Structure
  • Motor Power
  • As per diesel engine used
  • Noise Level
  • Below 80 dB
  • Power
  • Diesel Engine Driven, 40-60 HP (as per configuration)
  • Power Source
  • Diesel
  • Product Type
  • Trolley Core Drilling Rig
  • Spindle Speed
  • Variable, 100-900 rpm
  • Usage & Applications
  • Geotechnical, Soil Investigation, Mineral Exploration, Core Sampling
  • Voltage
  • 220-440V (as per configuration)
  • Weight (kg)
  • Approx. 3000-3500 kg
